PRODUCT INFORMATION

CATEGORIES	PRINTING MACHINE
Categories	Paper Bag Machine
Brand	Zhuxin
Model	ZXFD-290/330/460
FOB port	Ningbo Sea Port
Terms of Payment	L/C,Western Union,T/T

Product Description

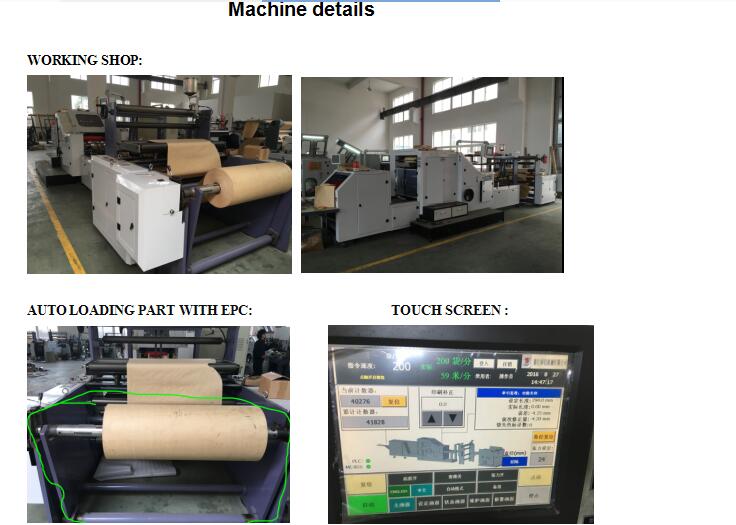

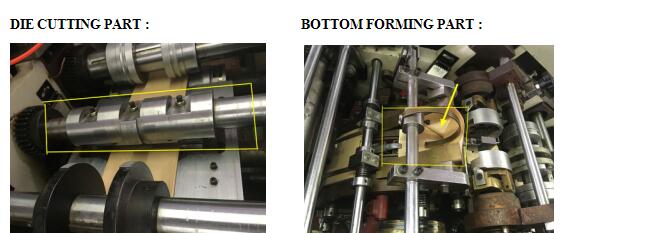

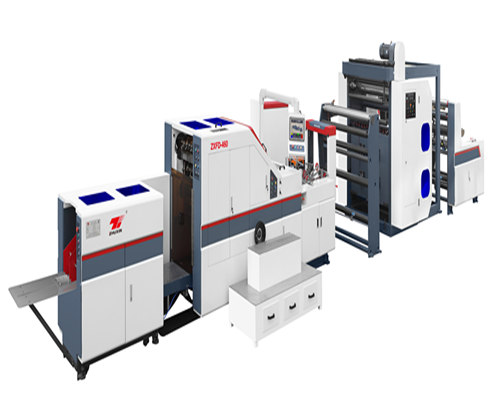

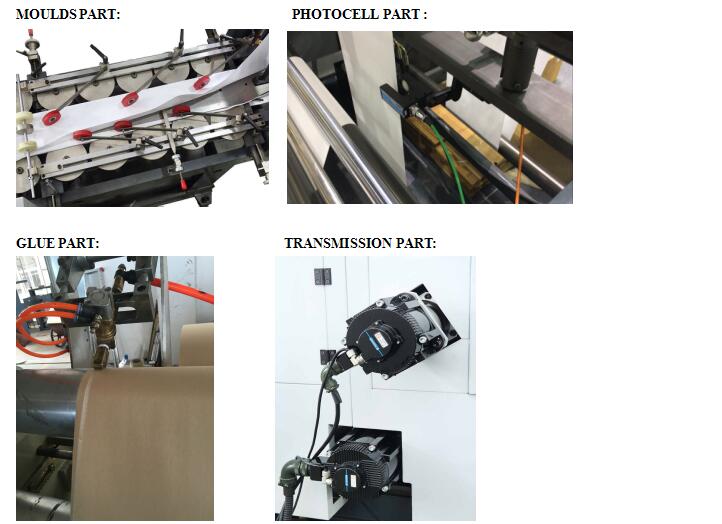

This machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.

ZXFD-290

CATEGORIES	PRINTING MACHINE
Width of Paper roll	320-900mm(12.60″-36.61″ )
Tube Length	260-533 mm (10.14″-20.99″)
Width of Bag	120-290 mm (4.72″-11.42″ )
Width of Bag Bottom	60-160mm(2.36″-6.30″ )
Paper weight	60-150g/m2
Max. Diameter of Paper Roll	1300 mm (51″)
Internal Diameter of Roll Core	76mm (2.99″)
Max.Speed	200pcs/min
Total Power	15Kw
Weight of Machine	Approx 8500 kgs
Machine Dimension	L 8600 mm ×W 2500 mm ×H1800mm

https://www.youtube.com/watch?v=5Fw6vVfRH5o

ZXFD-460

CATEGORIES	PRINTING MACHINE
Width of Paper roll	600-1300mm(23.62″-51.18″ )
Tube Length	260.4-533.4 mm (10.25″-21″)
Width of Bag	220-460 mm (8.66″-18.11″ )
Width of Bag Bottom	60-160mm(2.36″-6.30″ )
Paper weight	60-150g/m2
Max. Diameter of Paper Roll	1300 mm (51″)
Internal Diameter of Roll Core	76mm (2.99″)
Max.Speed	180pcs/min
Total Power	15Kw
Weight of Machine	Approx 10000 kgs
Machine Dimension	L 8600 mm ×W 3000 mm ×H1800mm
