PRODUCT INFORMATION

CATEGORIES	PRINTING MACHINE
Categories	Paper Bag Machine
Brand	Zhuxin
Model	JD-400
Function	Food Paper Bag Machine
Inverter	Delta
Servo Motor	Yaskawa Electric: Schneider
PLC	DELTA
Screen Touch	Taiwan WEVIEW
Photocell	Germany SICK
EPC	China Ruian Brand
Optional Parts	Auto Hydraulic Loading
FOB port	Ningbo Sea Port
Terms of Payment	L/C,Western Union,MoneyGram,T/T
Used	it is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags

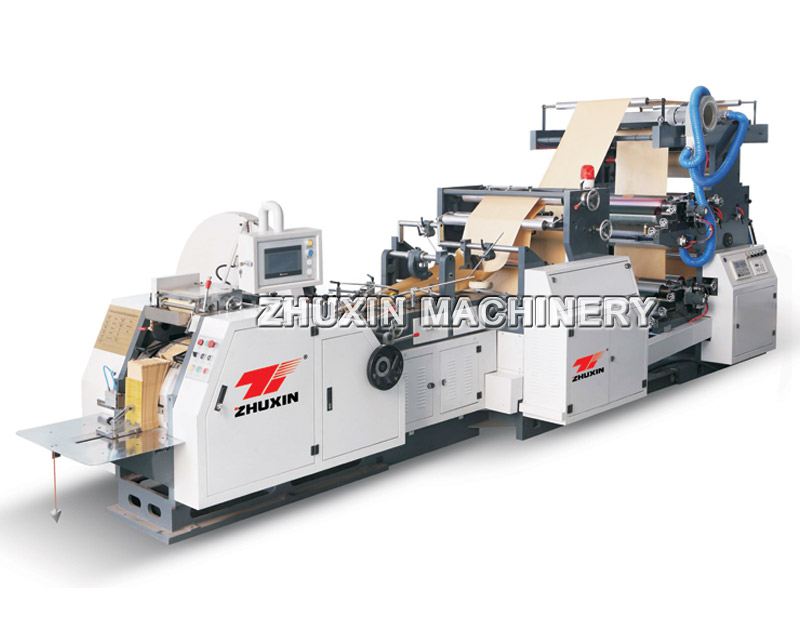

Automatic High Speed Food Paper Bag Machine online with 2 Color Flexo Printing Machine

Specifications
1. Easy operation Automatic Paper Bag Making Machine
2. Low power consumption
3. Cerficate:CE
4. Flat bottom / V bottom paper bag
5. Paper bag machine online with Printer

Features:
1.Suited for 40-80gsm paper.
2.Controls bag length through the human-machine interface.
3.PLC system for calculating parameters.
4. Equipped with an accurate photocell system.

Main technical variables:

Model	JD-400	JD-650	JD-850
Paper weight:	40-80g/m2	40-80g/m2	40-80g/m2
Bag length	160-450mm	160-650mm	200-850mm
Bag width	70-260mm	70-300mm	100-350mm
Gusset size	0-100mm	0-100mm	0-100mm
Speed	60-400pcs/min	60-300pcs/min	60-200pcs/min
Width of paper roll	260-720mm	260-820mm	260-900mm
Power	10kw	10kw	10kw
Total weight:	3000kg	4200kg	5200kg
Machine dimensions	4500 x 2100 x 1900mm	500 x 2100 x 1900mm	5300 x 2100 x 1900mm
