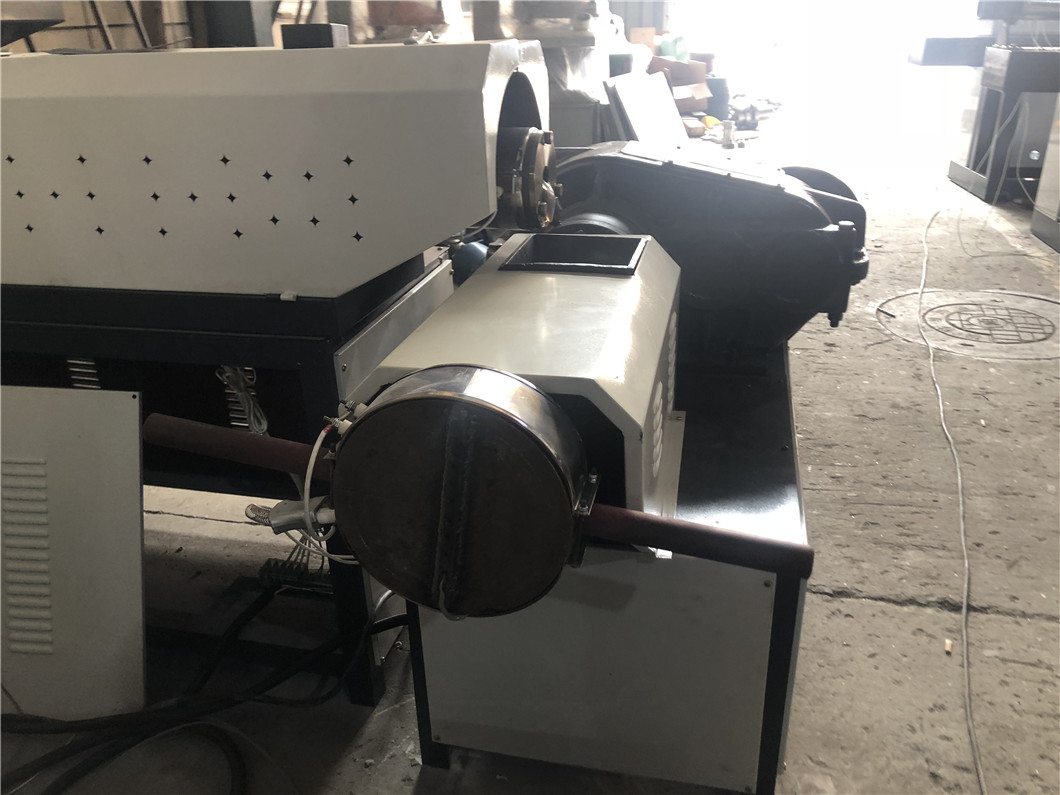

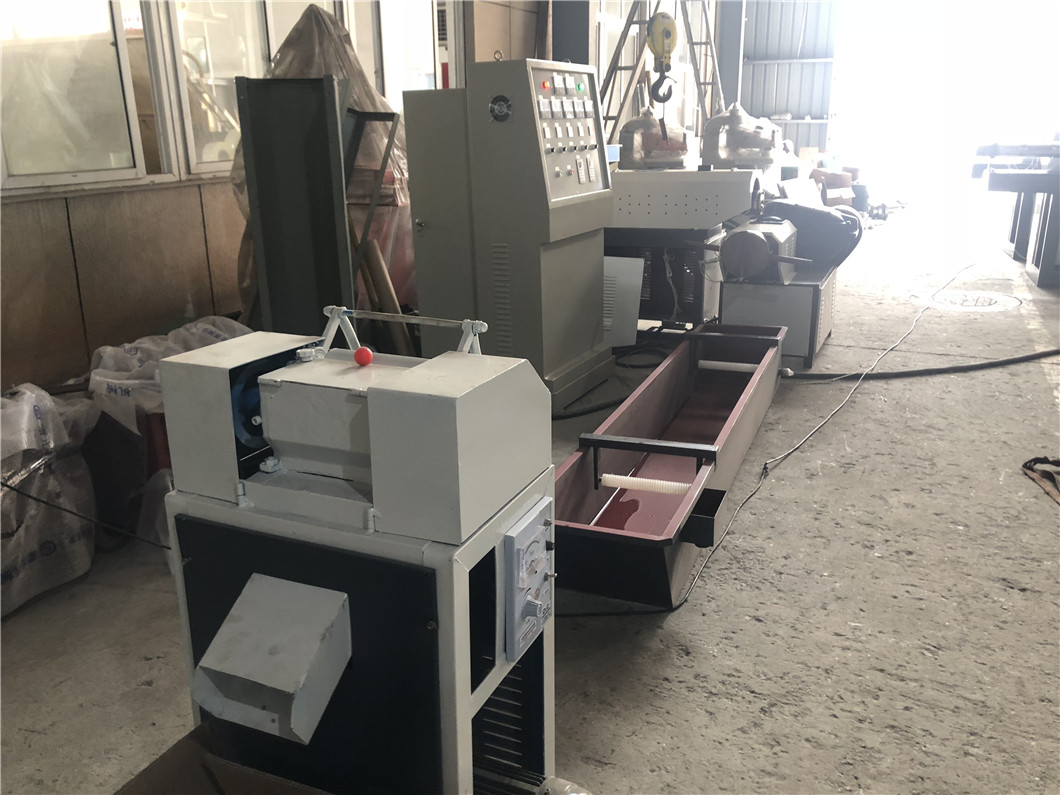

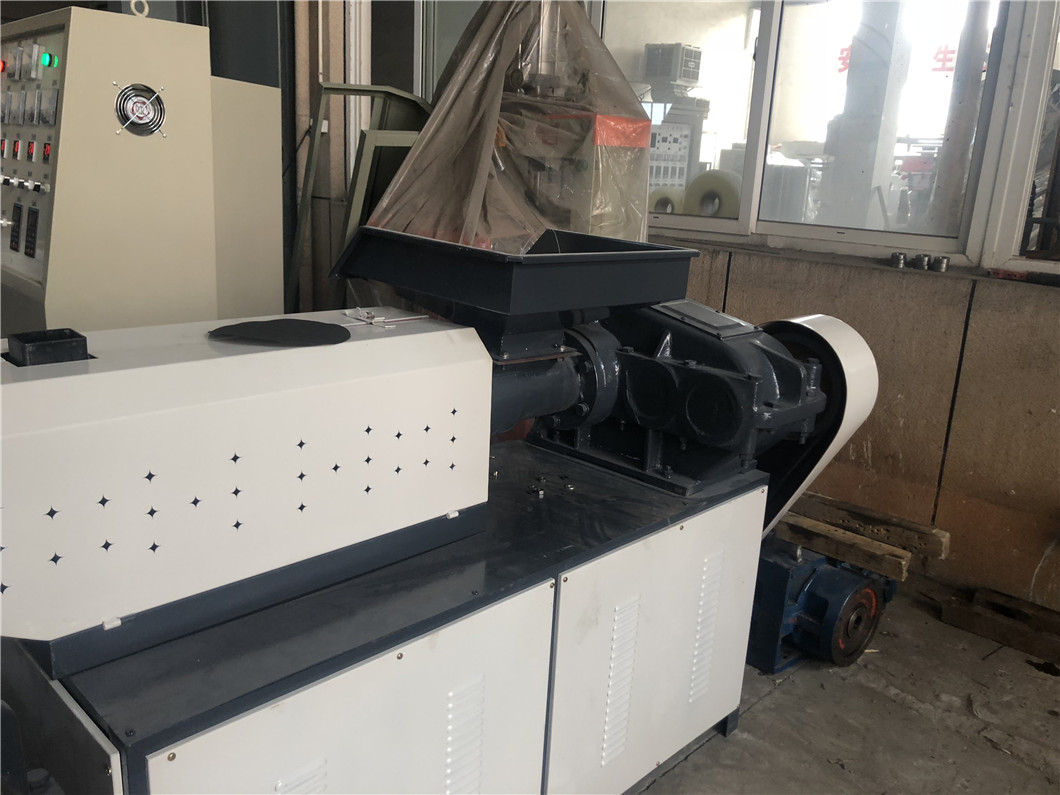

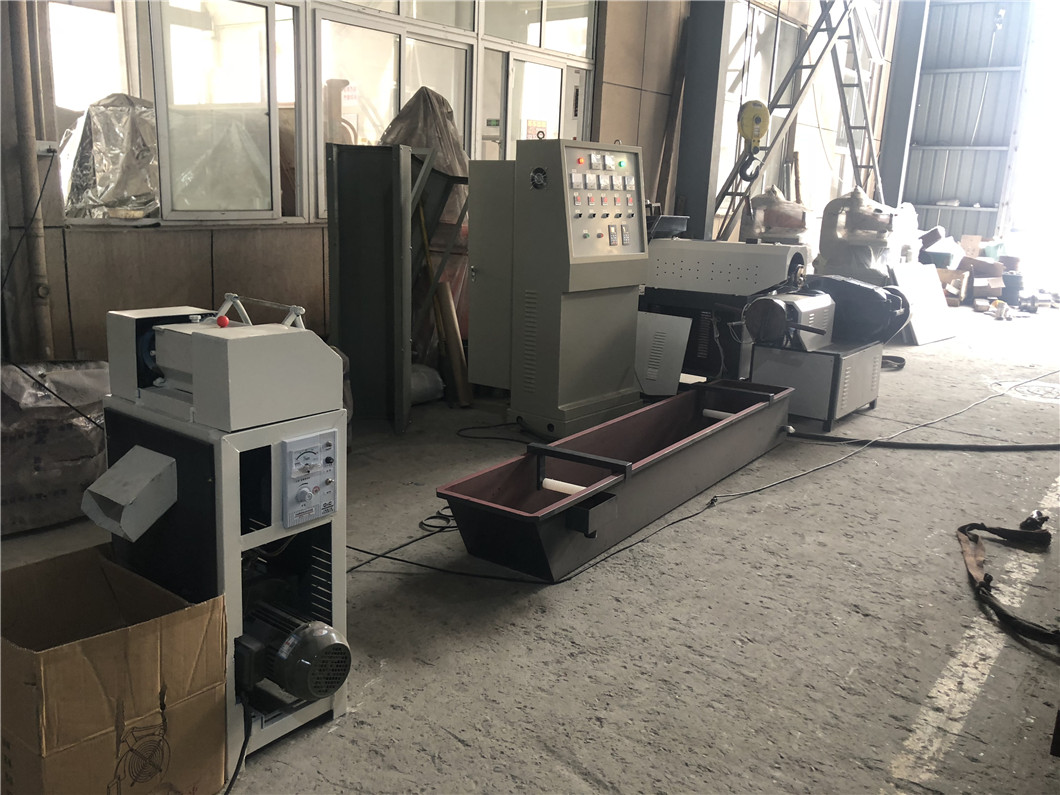

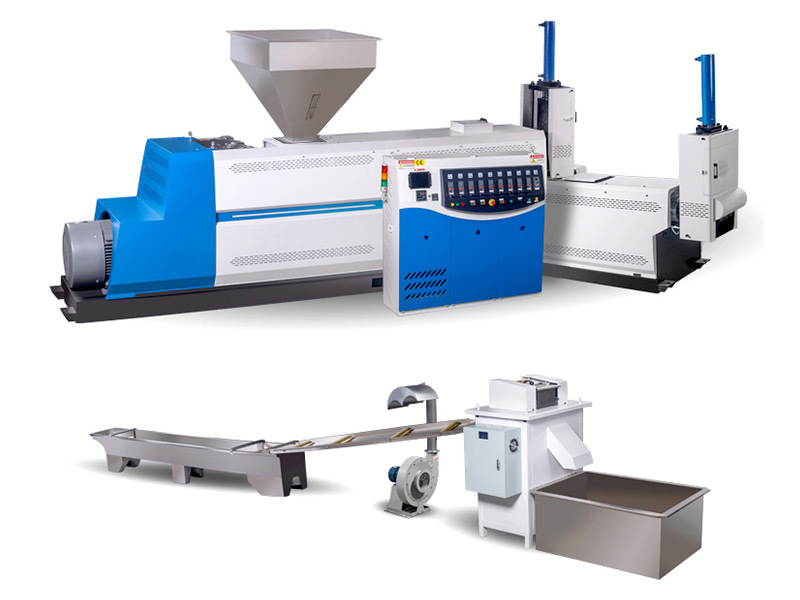

SJ-140160 double stage plastic recycling machine
SJ-140160 double stage plastic recycling machine
تماس بگیرید
14
نفر در حال مشاهده این محصول هستند!
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/express.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/payment.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/originals.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/sevendays.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
PRODUCT INFORMATION
| Model | SJ-140 | SJ-160 | ||
| Yield | 250-300kg/h | 300-350kg/h | ||
| Applicable voltage | 380V/50hz/3ph | |||
| Screw | First stage | Diameter:140mm, length:3000mm, material: 38CR with vent, exhaust screw | Diameter:160mm, length:3200mm, material: 38CR with vent, exhaust screw | |
| Second stage | Diameter:120mm, length:1200mm, material: 38CR with vent, exhaust screw | Diameter:140mm, length:1200mm, material: 38CR with vent, exhaust screw | ||
| Gear box | ZLYJ：First stage：250;；Second stage：173 | ZLYJ：First stage：280;；Second stage：180 | ||
| Motor | First stage：55KW;Second stage：15KW | First stage：75KW;Second stage：18.5KW | ||
| Inverter | First stage | Adopt international famous brand: HOLIP55kw | ||
| Second stage | Adopt international famous brand: HOLIP15kw | |||

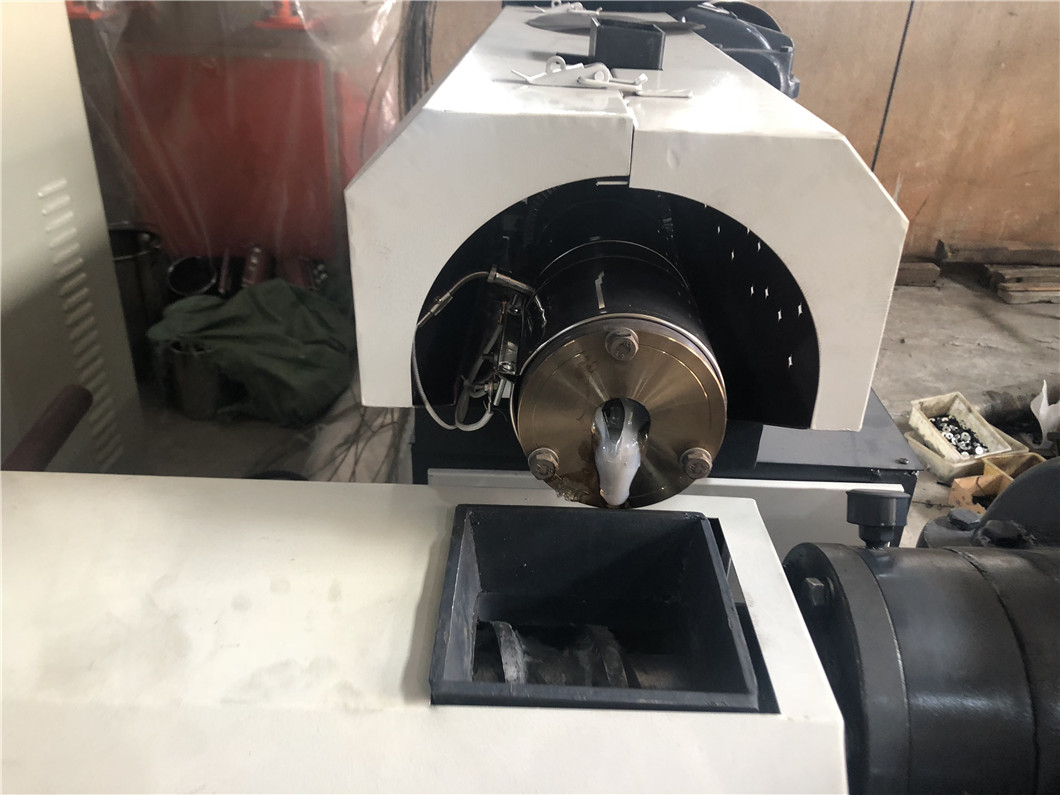

| Screen changer | First stage | Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa | Hydraulic upper and lower plate size:250mm * 250mm; working pressure: ≤ 35MPa | |
| Second stage | Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa | Hydraulic upper and lower plate size:250mm * 250mm; working pressure: ≤ 35MPa | ||
| Control box | Temperature control display:12Zone; Schneider and China ZHENGTAI products are used for electrical appliances | Temperature control display:13Zone; Schneider and China ZHENGTAI products are used for electrical appliances | ||
| Heating | Material: Ceramic；Heating voltage: 220 V / 50 Hz；Heating power: 2kw-3kw | |||
| Hopper | Open parallel hopper | |||
| Cooling system | Size ：2500*400*350mm Material ：Stainless | |||
| Fan | 1.5KW medium voltage motor; stainless steel water plate | |||

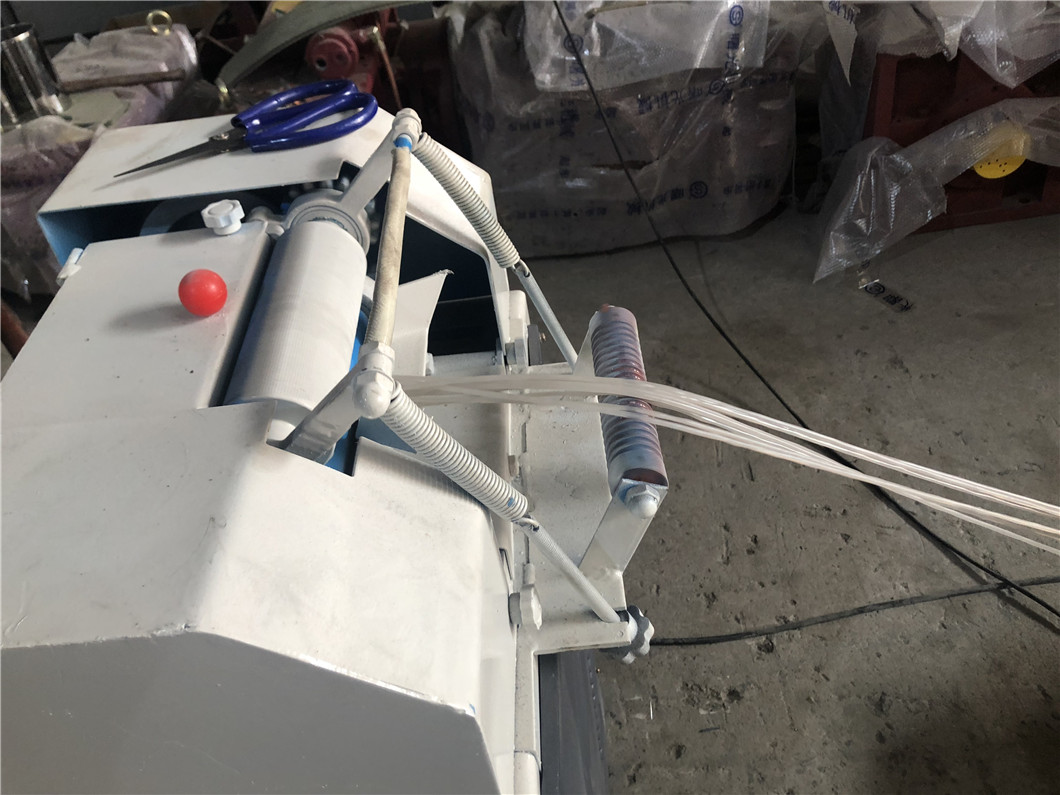

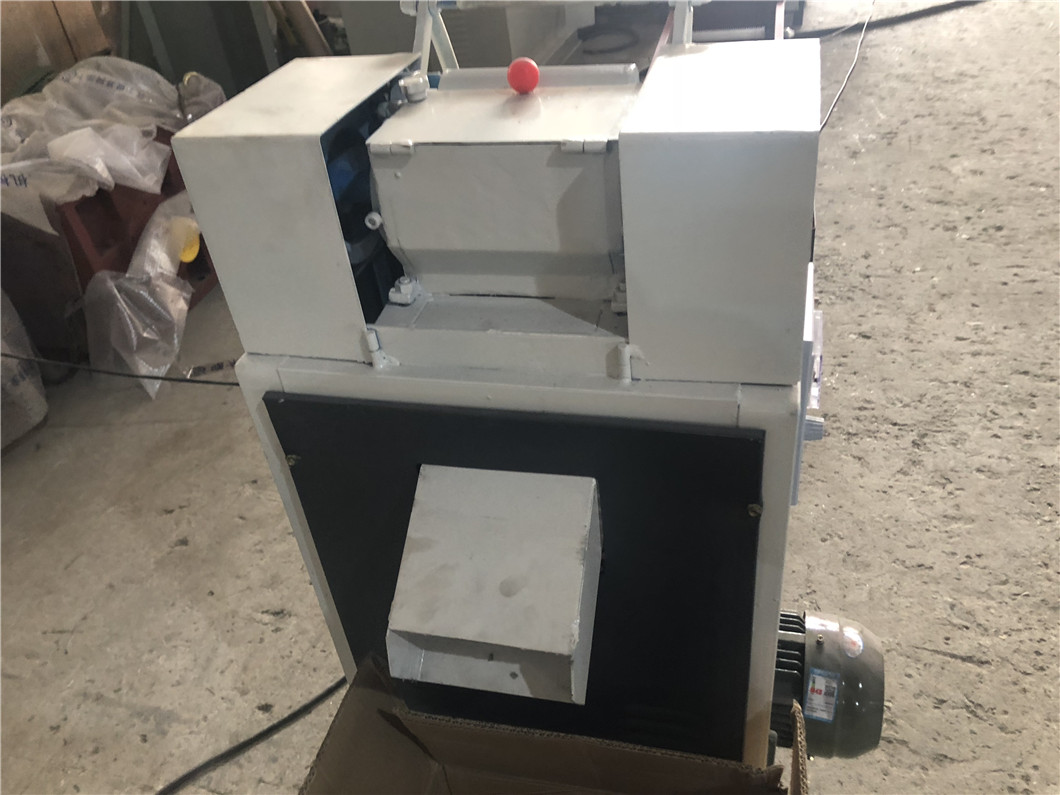

| Cutter system | Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW | |||
| Oil box | Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L | |||
| Random accessories | Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed) | |||
