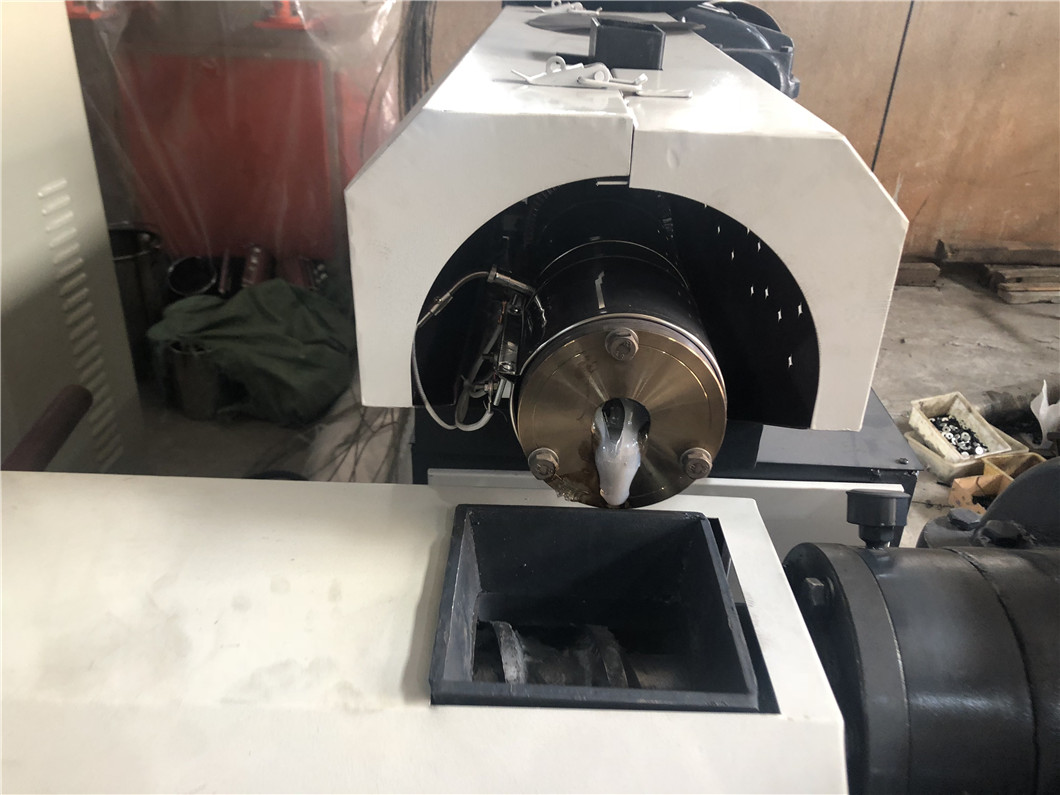

SJ-100120 double stage plastic recycling machine - Image 1

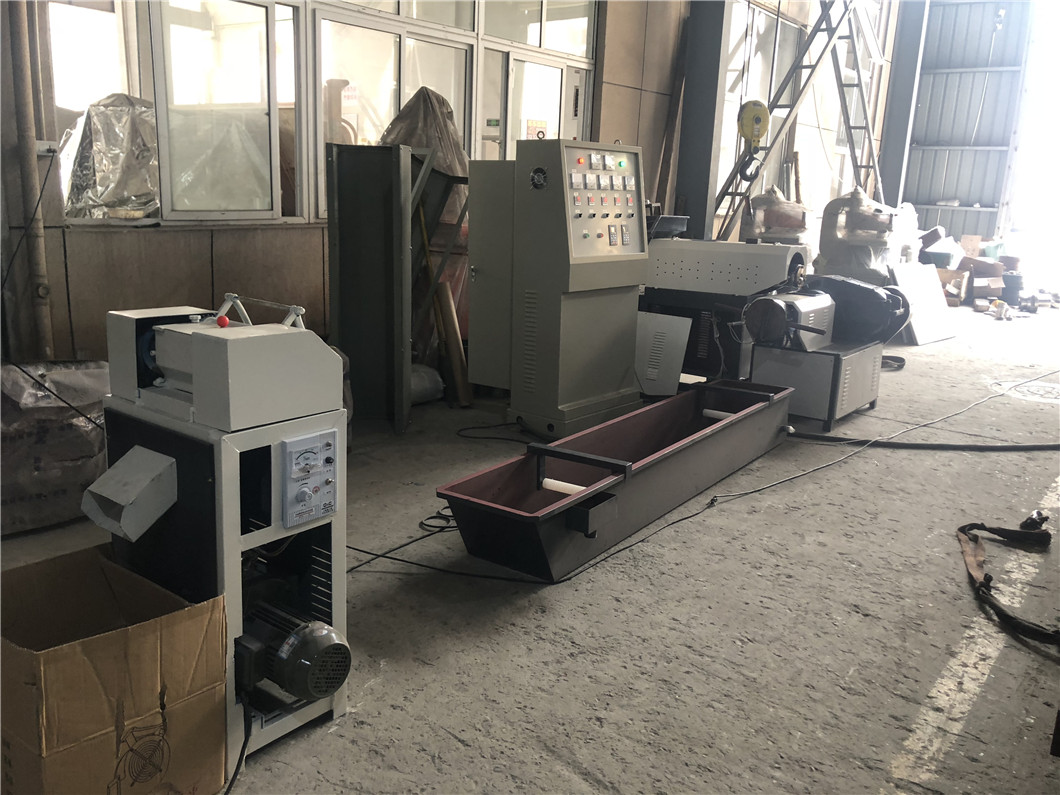

SJ-100120 double stage plastic recycling machine - Image 2

بزرگنمایی تصویر

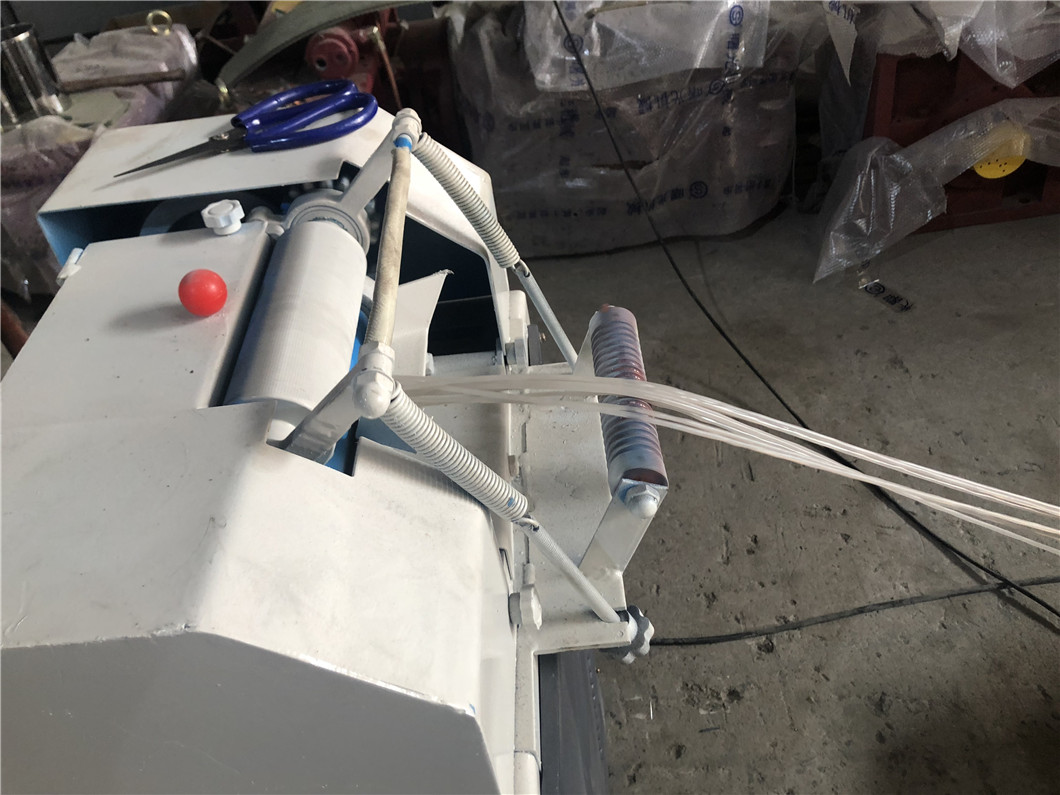

SJ-100120 double stage plastic recycling machine - Image 3

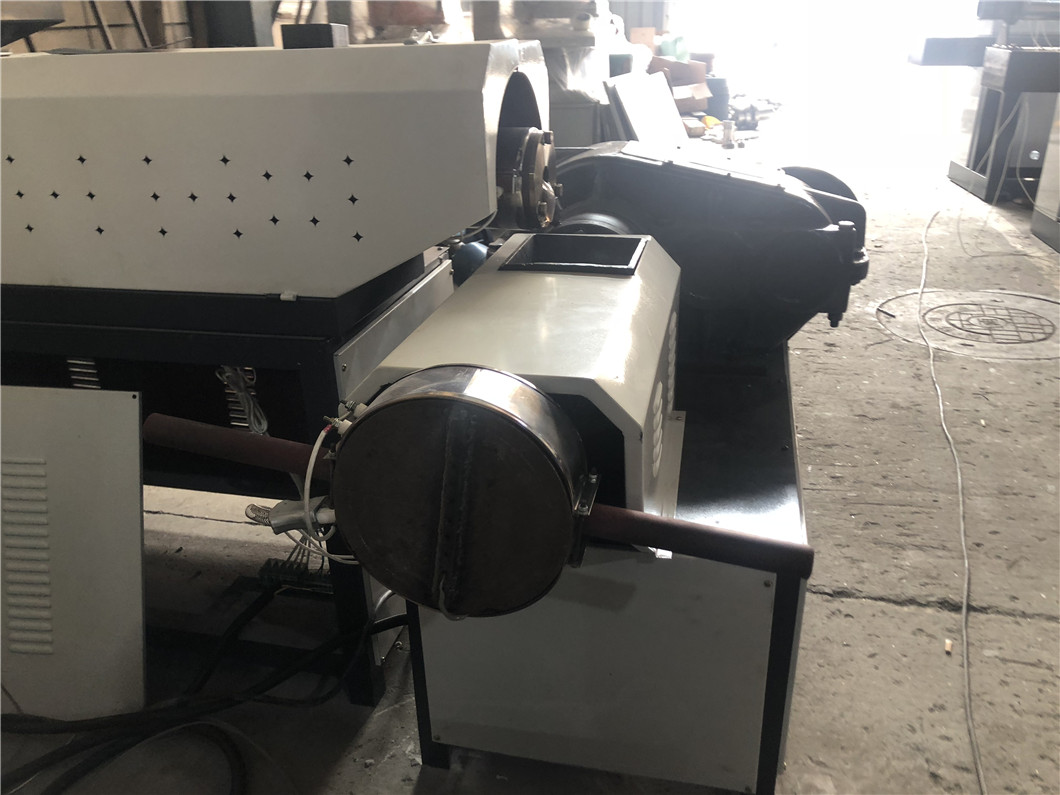

SJ-100120 double stage plastic recycling machine - Image 4

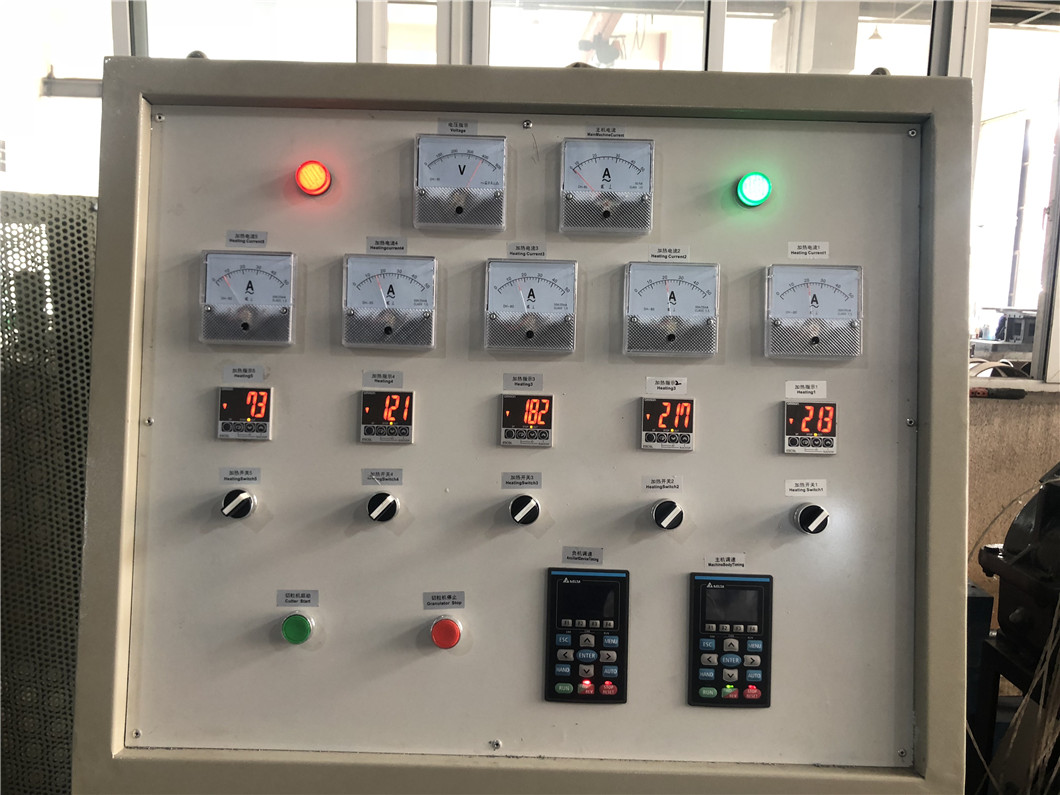

SJ-100120 double stage plastic recycling machine - Image 5

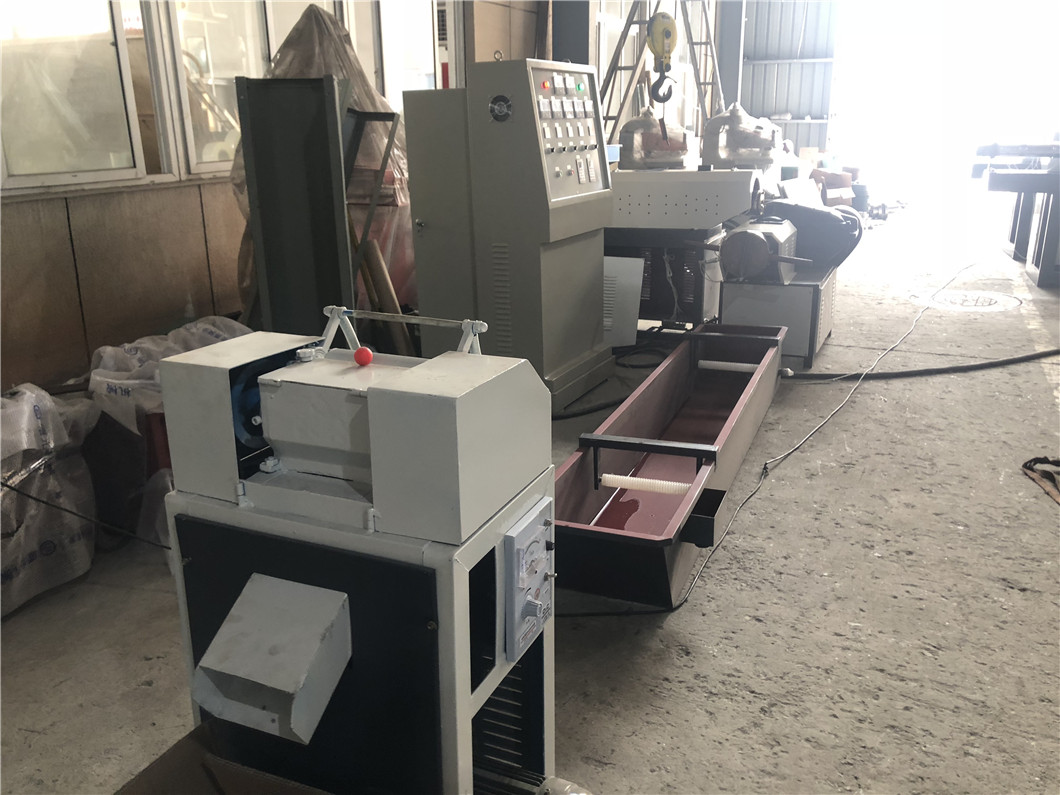

SJ-100120 double stage plastic recycling machine - Image 6

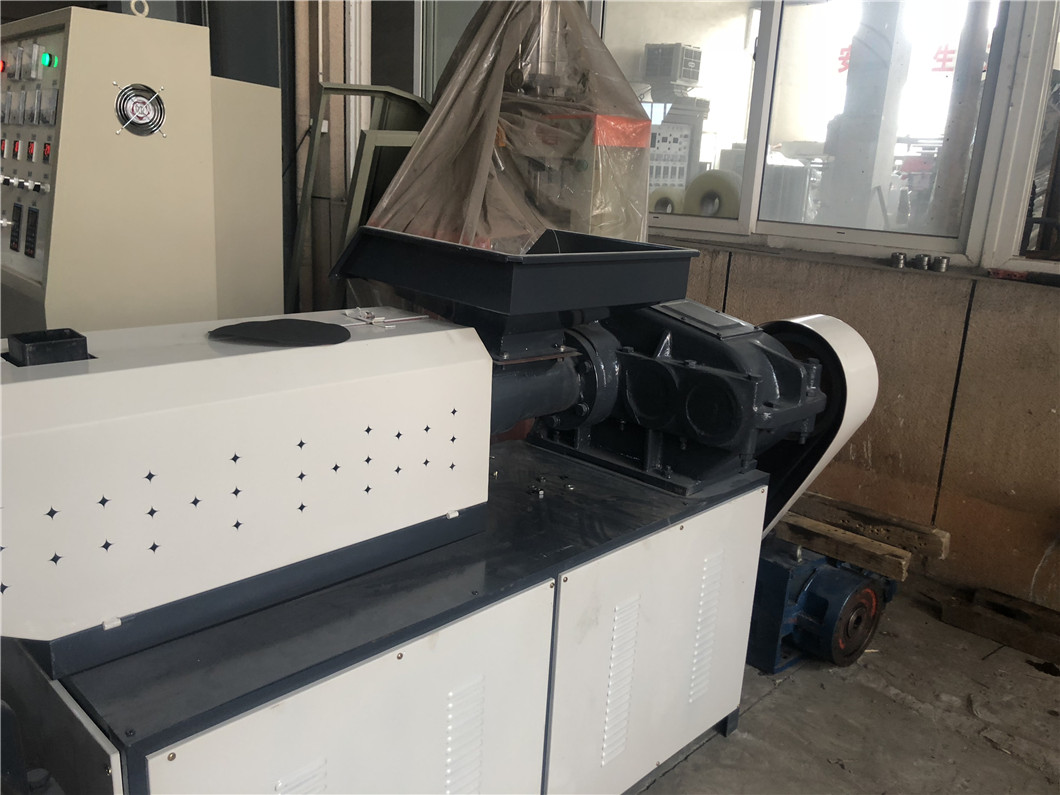

SJ-100120 double stage plastic recycling machine - Image 7

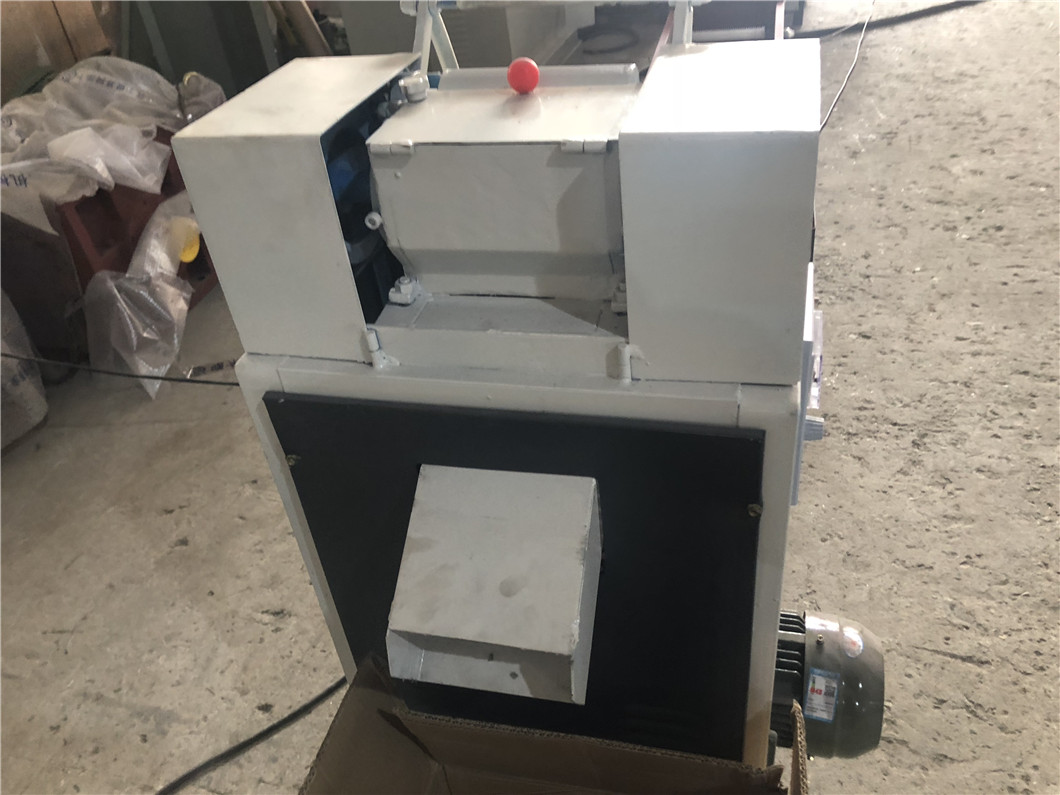

SJ-100120 double stage plastic recycling machine - Image 8

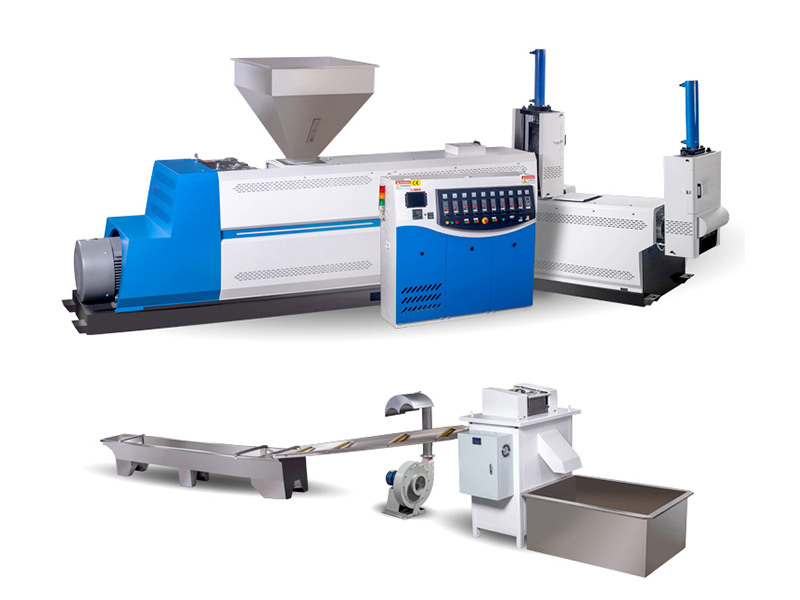

SJ-100120 double stage plastic recycling machine

دسته: دستگاه بازیافت و گرانول

تماس بگیرید

19 نفر در حال مشاهده این محصول هستند!

تحویل اکسپرس

سفارشات بالای 1 میلیون تومان، شامل حمل رایگان هستند.

پرداخت امن

می توانید پرداخت را انلاین یا در محل، هنگام تحویل انجام دهید.

ضمانت اصالت کالا

استاندارد کیفیت هر محصول را تضمین می کنیم.

7 روز گارانتی بازگشت وجه

در صورت مشکل، میتوانید تا 7 روز محصول را مرجوع کنید.

توضیحات
نظرات (0)

PRODUCT INFORMATION

Main technical parameters

Model	SJ-100		SJ-120
Yield	80-100kg/h		150-200kg/h
Applicable voltage	380v/50hz/3ph
Screw	First stage	Diameter:100mm, length:2000mm, material: 38CR with vent, exhaust screw;	Diameter:120mm, length:2400mm, material: 38CR with vent, exhaust screw;
	Second stage	Diameter:100mm, length:1200mm, material: 38CR with vent, exhaust screw;	Diameter:100mm, length:1200mm, material: 38CR with vent, exhaust screw;
Gear box	ZLYJ：First stage：173;；Second stage：173		ZLYJ：First stage：200;；Second stage：173
Motor	First stage：22KW;Second stage：15KW		First stage：37KW;Second stage：15KW
Inverter	First stage	Adopt international famous brand: HOLIP22kw；
	Second stage	Adopt international famous brand: HOLIP15kw；
Screen changer	First stage	Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa
	Second stage	Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa
Control box	Temperature control display:9 Zone; Schneider and China ZHENGTAI products are used for electrical appliances		Temperature control display:10Zone; Schneider and China ZHENGTAI products are used for electrical appliances
Heating	Material: Ceramic；Heating voltage: 220 V / 50 Hz；Heating power: 2kw-3kw;
Hopper	Open parallel hopper
Cooling system	Size：2500400350mm Material：Stainless
Fan	1.5KW medium voltage motor; stainless steel water plate
Cutter system	Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW;
Oil box	Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;
Random accessories	Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed)
