PRODUCT INFORMATION

CATEGORIES	PRINTING MACHINE
Categories	Paper Bag Machine
Brand	Zhuxin
Model	JD-400/650/850
Brand	Zhuxin Brand
Function	Sharp V Bottom Food Paper Bag Machine
PLC	Panasonic
Servo Motor	Yaskawa
Touch Screen	WEVIEW
Photo Eyes	Germany SICK Electric: Schneider
EPC	China Brand

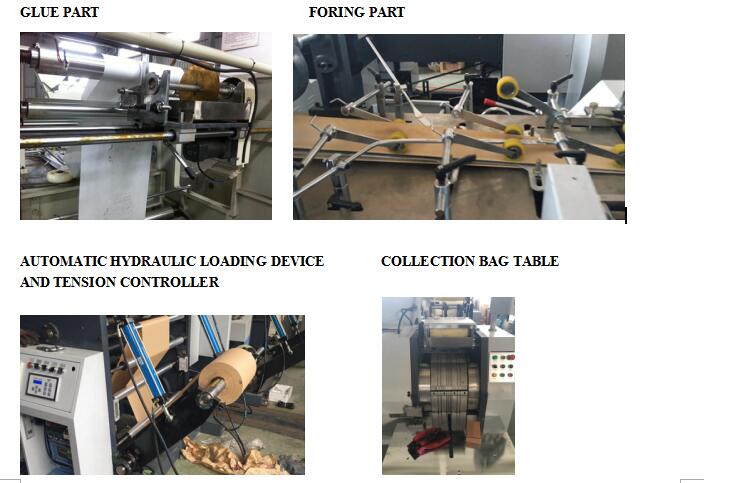

Included Automatic Hydraulic Loading

CATEGORIES	PRINTING MACHINE
Inverter	Delta
FOB port	Ningbo Sea Port
Terms of Payment	L/C,Western Union,MoneyGram,T/T

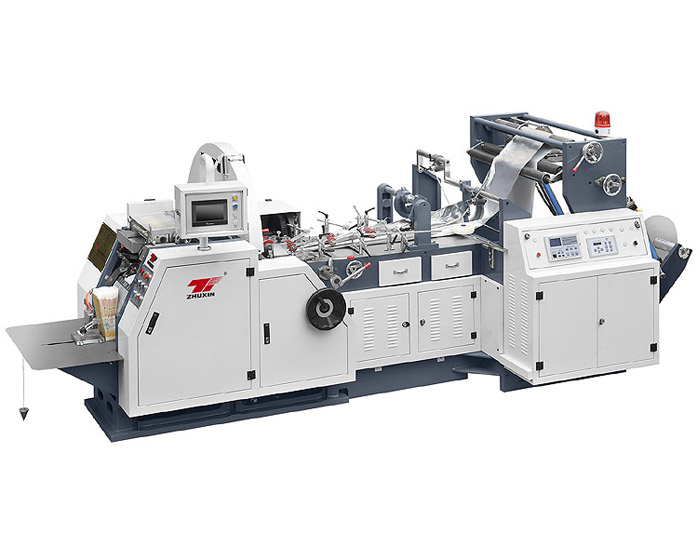

Sharp V Bottom Paper Bag Making Machine

Specifications:
It market such as snack paper bag, food paper bag, bread paper bag, KFC paper bag, MacDonald paper bag, fried chicken paper bag, roast food paper bag, dry fruit paper bag , buffet paper bag and environment-friendly paper bag, etc.

Features:

1.Suited for 40-80gsm paper.
2.Controls bag length through the human-machine interface.
3.PLC system for calculating parameters.
4.Equipped with an accurate photocell system.

Main technical variables:

Model	JD-400	JD-650	JD-850
Paper weight:	40-80g/m2	40-80g/m2	40-80g/m2
Bag length	160-450mm	160-650mm	200-850mm
Bag width	70-260mm	80-300mm	100-350mm
Gusset size	0-100mm	0-100mm	0-100mm
Speed	60-400pcs/min	60-300pcs/min	60-200pcs/min
Width of paper roll	260-720mm	260-840mm	260-960mm
Power	10kw	10kw	10kw
Total weight:	2500kg	3000kg	3500kg
Machine dimensions	4500 x 2100 x 1900mm	5000 x 2100 x 2000mm	5300 x 2100 x 2000mm

Optional : 1.PP windows
2. Flexo Printing Machine ( as per client request we offer 2 ,4 ,6 colors)
