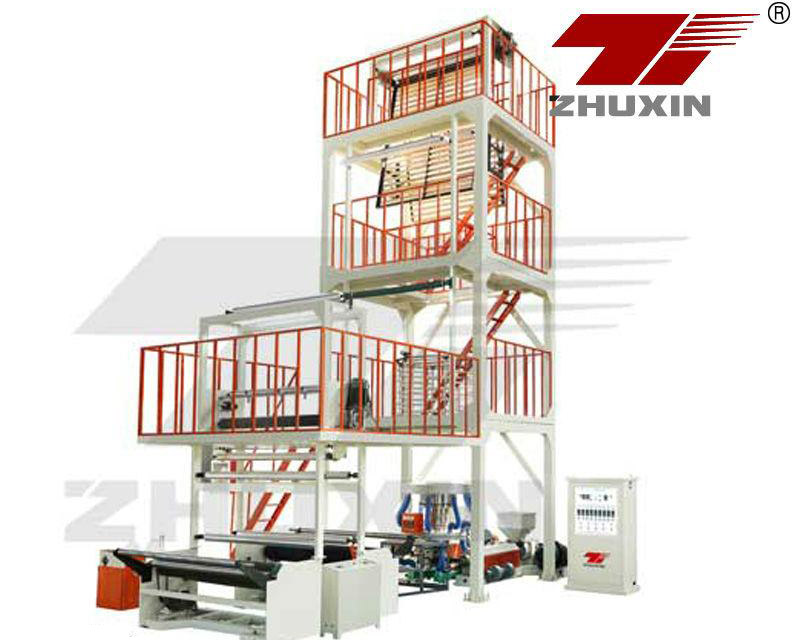

Double Layer Co nextrusion Blown Film Machine
Double Layer Co nextrusion Blown Film Machine
تماس بگیرید
19
نفر در حال مشاهده این محصول هستند!
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/express.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/payment.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/originals.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
Warning: file_get_contents(https://iranzhuxin.com/wp-content/uploads/2020/01/sevendays.svg): failed to open stream: HTTP request failed! HTTP/1.0 403 Forbidden in /home/iranzh/public_html/wp-content/plugins/woodmart-core/post-types.php on line 728
PRODUCT INFORMATION
| Categories | Coextrusion Blown Film Machine |
|---|---|
| Brand | Zhuxin |
| Model | Double layer coextrusion Blown Film Machine |
| FOB port | ningbo sea port |
| Terms of Payment | L/C,Western Union,T/T |
| Comments | 2SJ-50/60 double layer coextrusion Blown Film Machine,we can design different size according to customer’s request… |
Performance and Characteristics:
2SJ-50/60 double layer coextrusion Blown Film Machine plasticates two identical or different raw substances by two extrudes them to the complex machine head,then produces the coextruding molded complex film.By this way,it make possible to enhance the film’s physical performance,rigidity,good insulation-proof and impenetrability. The machine entails advanced consecutive rotation machine head,ensure smooth and homogeneous products,meets the film’s quality requirement during the subsequent working procedure of the packing machine or the printer,also is useble for manufacturing the complex bead sheen film,complex hydro-packing film,insulation film,multi-functional farming film,etc..Its application range is gradually widening to the target of plastic product development. Material:LDPE,HDPE,LLDPE
Main Technical Variables :
| Model | 2SJ-50 | 2SJ-55 | 2SJ-60 |
| Suitable material | HDPE | LDPE | LLDPE |
| Film width | 600-1000mm | 800-1500mm | 1000-1800mm |
| Film thickness | 0.03-0.20mm | 0.03-0.20mm | 0.03-0.20mm |
| Max. squeezing amount of single screw rod | 50kg/hr | 75kg/hr | 90kg/hr |
| Extruder | |||
| Screw diameter | Φ50×2 | Φ55×2 | Φ60×2 |
| Screw L/D length | 28：1/30：1 | ||
| Screw material | Sacm-645/38 Crmoala | ||
| Cylinder material | Sacm-645/38 Crmoala | ||
| Cylinder cooling | 370×2 | 550×2 | 550×2 |
| Driving motor | 15/18.5/15kw | 18.5/22/18.5kw | 22/30/22kw |
| Temperature control | 3 | 3 | 4 |
| Average power-consume | 55kw | 68kw | 90kw |
| Type of die | |||
| Die size | Φ250/200 | Φ250/350 | Φ300/400 |
| Temperature control | 3 | 3 | 4 |
| Air ring | 1 | ||
| Air blower | 5.5kw | 7.5kw | 11kw |
| Take-up unit | |||
| Roller width | Φ165×1100 | Φ165×1600 | Φ180×2000 |
| Effective width | 1000mm | 1500mm | 1800mm |
| Height adjustable type | 800mm | ||
| Take-up speed | 10-65m/min | 10-65m/min | 10-65m/min |
| Take-up motor | 1.5kw | 1.5kw | 2.2kw |
| Winding unit | |||
| Winding motor | 10N.m | 16N.m | 18N.m |
| Winding speed | 10-65m/min | 10-65m/min | 10-65m/min |
| Weight | 3T | 3.5T | 4.5T |
| Outline diameter(LxWxH) | 6.5×5.5×6.5m | 7.5×5.8×7.5m | 7.8×6.4×7.5m |
Optional Equipment:1. Auto Loader2. Film Surface Treater3. Die Rotary Device4. Air Compressor5. Mechanics Screen Changer6. Double Wind
