PRODUCT INFORMATION
| Categories | Printing Machine |
|---|---|
| Brand | Zhuxin |
| Model | DSY-800E/1100E |
| FOB port | FOB port |
| Terms of Payment | L/C,Western Union,T/T |
| Comments | It is suitable for multi-colour coce-through continuous printing for such roll film materials as BOPP,PET,PVC,PE,aluminium foil |

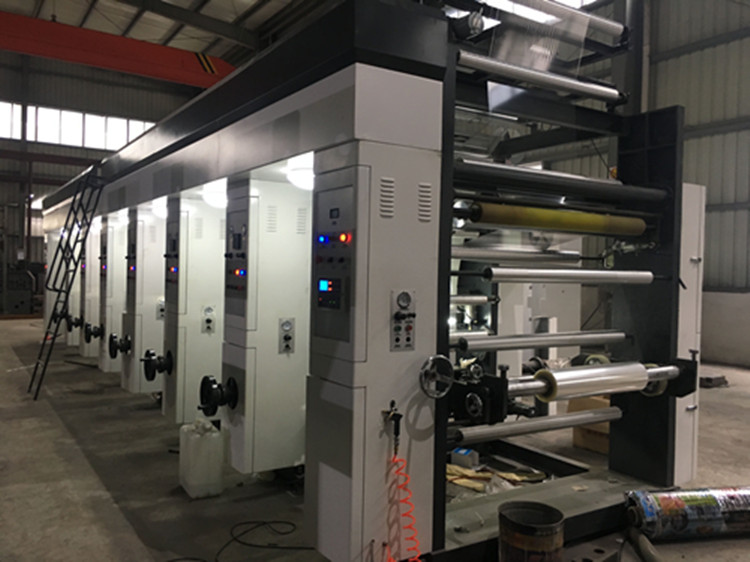

DSY Series High-speed Computer Gravure Printing Machine
DSY series high-speed computer gravure printing machine is suitable for multi-colour coce-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET,PVC,PE,aluminium foil and paper,etc.
1.Every control module of the automatic colour register system is equipped with microprocessor and can correct the deviation of colour register quickly and accurately.
2.The main machine adopts frequency control of motor speed.
3.Eeleasing tension adopts full-automatic tension controller and magnetic powder brake.
4.Rolling adopts full-automtic constant tension and tracion coordinated with torque DC motor, double-station automatic turnover, replacing the matrrial without stopping the machine.
5.Two-layer airproof structure for drying oven provides uniform wind flow, while specific cooling fin of stainless steel for heating tube provides energy-saving opportunity, uniform temperature as well as anti fire possibility.
6.Pneumatic system is adopted for press roller and traction roller.
7.Automatic ink circulation system is provided.
8.Air shaft is used for unwinding and rewinding shaft providing convenient assemble and unassemble possibilities.
9.It is provided with display of press line speed and accumulated length in meter.
10.Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability.
Main Technical Variables:
| CATEGORIES | PRINTING MACHINE |
|---|---|
| Model | DSY-800 |
| Effective Printing Width | 800mm |
| Max.Width of base Material | Max.Width of base Material |
| Max.Printing Speed | 120m/min |
| Max.Mechanical Speed | 150mm/min |
| Inside Diameter of Roll Core of Base Materrial | φ76mm |
| Diameter of Printing Plate Roller | φ120～φ300mm |
| Modified Accuracy of Computer Registration | ±0.2mm(wholeMachine) |
| Control Range of Tension | 0～25kg/FullWidth |
| Heating Power of Oven | 50kw |
| Total Power of Machine | 96kw |
| Weight of Machine | 10000kg |
| Outline Diameter(LxWxH) | 12400x2500x2350mm |
