PRODUCT INFORMATION
| CATEGORIES | PRINTING MACHINE |
|---|---|
| Categories | Slitting Machine |
| Brand | Zhuxin |
| Model | WFQ -1300W |
| Function | Plastic Film Slitting Machine |
| Feature | High Speed ,High Quality |
| EPC | Included |
| Round Knife | Included |
| Air Shaft | Included |
| Auto Tension Control | Included |
| FOB port | Ningbo Sea Port |
| Terms of Payment | L/C,Western Union,MoneyGram,T/T |

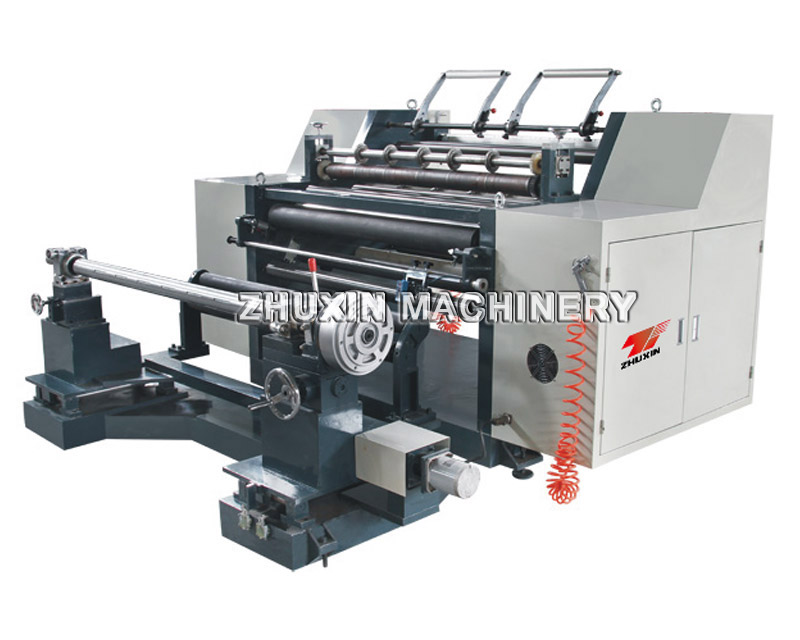

High-speed Automatic Slitting Machine
Specification:
1.Horizontal slitting machine
2.used for slit plastic roll film,paper,aluminium foil
3.with tension control
Characteristics:
Use:This machine is suitable for separating and cutting such various roll mateiale as BOPP,PET,CPP,CPE,PVC, aluminium foil and paper,etc, and can cut edge, separate and cut materiel according to different requirements during production..
1.The control system interface is in front and back of the machine, easy operating.
2.Adopting three-phase asynchronous motor , frequency control can be achieved.
3.The tension of membrane can be automatically adjusted (discharge using automatic tension control system).
4.Traction roller with horizontal push cylinder pressure roller, the film does not slip.
5.Correcting system with a synchronous motor, high precision ball screw, Gabriel photoelectric eyes. Use of linear bearing rails, mobile travel 130mm, automatically correcting the formation of more precise cut.
6. Using flat knife and round knife cutting .
7 Waste materials automatic processing device.
8. Winding automatic processing device.
9. Coiling axis horizontal axis rotary winding design, Single operation is ok.
10. With automatic countingr device, operations can be automatically calculated in meters.
11. Machine all the guide roll can be adjusted to eliminate vertical and horizontal deviation of raw materials.
Main Teachnical Variables:
| Max.Width | 1300mm |
| Max.Unwind Diameter | ф1000mm |
| Max.Rewind Diameter | ф500mm |
| Cutting Width | 30-1300mm |
| Inner Diameter | ф76m |
| Cutting thickness | 10-75um(flat knife slitting)
10-350um（round knife slitting） |
| Speed | 200m/min |
| Correcting accuracy | ±0.3mm |
| Power | About 4.8kw |
| Weight | about2800kg |
| Overall Dimension | 3000×2750×1520mm |
